These versatile and rigid Needle Probes are ideal for penetrating a variety of materials. Fast response.
Already purchased a Type T Needle Probe, 5-inch (T-100)?
Explore Type T Needle Probe, 5-inch (T-100)
Everything you need to know about the Type T Needle Probe, 5-inch (T-100). Browse full specifications and additional product support details below.
-
Measurement RangeFrom -58 to 482 °FFrom -50 to 250 °C
-
Accuracy±0.4 °F From -4 to 158 °F±0.9, 0.4% Reading °F From -40 to -4 °F and 158 to 482 °F±1.8, 1.5% Reading °F From -58 to -40 °F±0.2 °C From -20 to 70 °C±0.5, 0.4% Reading °C From -40 to -20 °C and 70 to 250 °C±1, 1.5% Reading °C From -50 to -40 °C
-
Cable Temperature Range14 to 221°F (-10 to 105°C)
-
Transition/Handle Temperature RangeMax temp 221°F (105°C)
-
Response TimeLess than 2 seconds typical in liquid. Less than 10 seconds full reading.
-
Probe Diameter0.06 inches
-
Probe Length5.0 inches

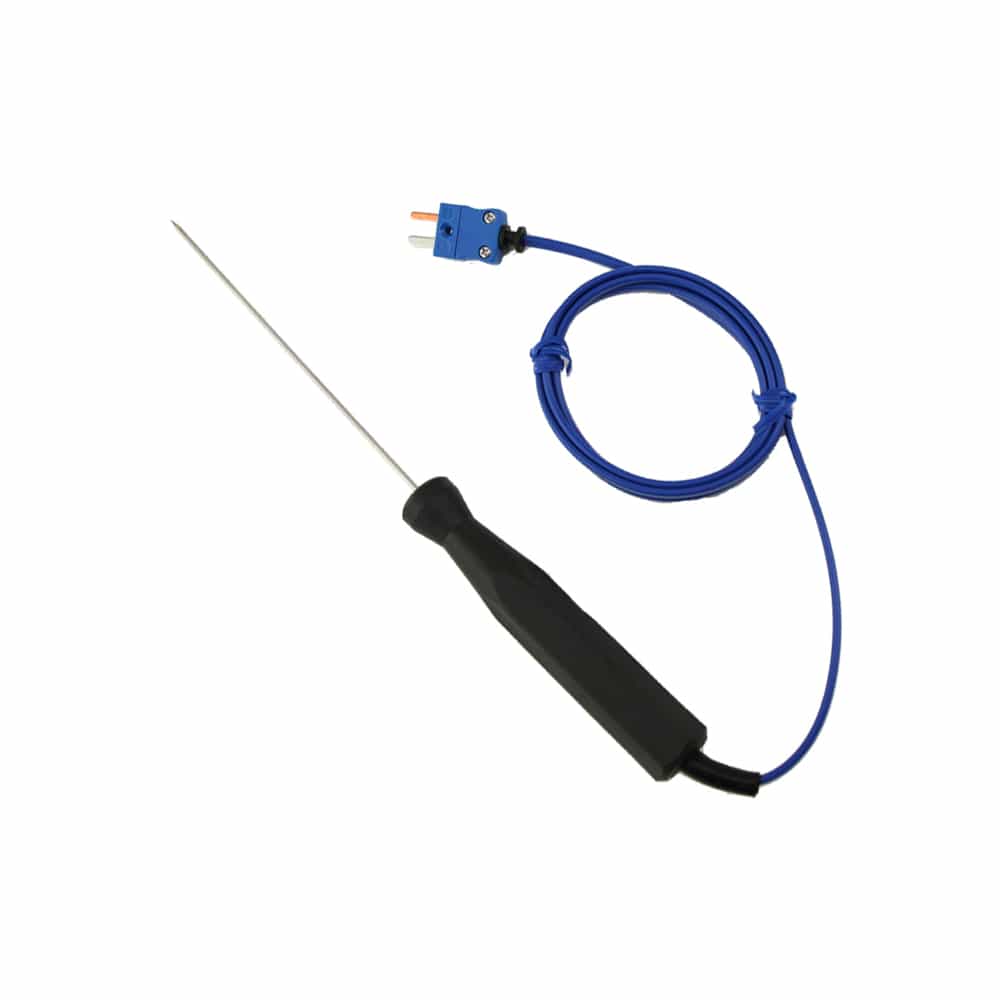

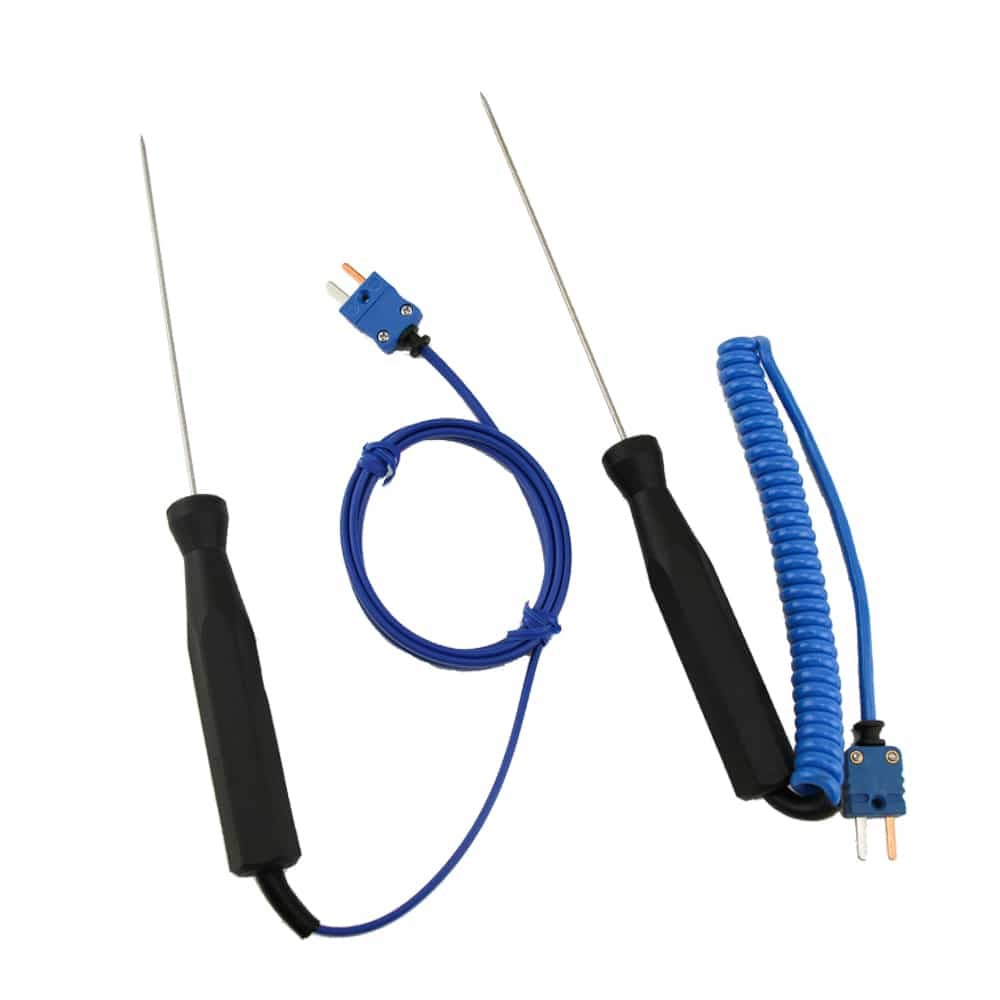

Type T Needle Probe, 5-inch (T-100)
- Cable Style: Straight
$61.00
Pickup currently not available
